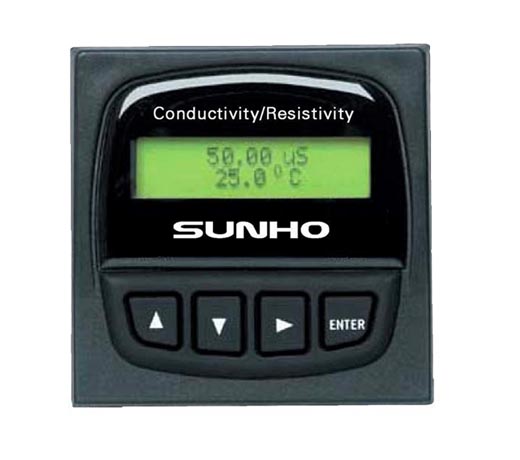

| EC-8850 |
| 测量范围(Range) | Con：0.055～400000μS/cm； Res：10K～18.2MΩ·cm； TDS : 0.023～200000ppm； |
| 准确度(Accuracy) | 1.0%(FS) |
| 温度补偿(Temp.Comp.) | The 25 ℃basis, automatic temperature compensation |
| 介质温度(Oper. Temp.) | Con/TDS:-25℃～+125℃； Res：0～100℃ |
| 配套电极(Sensor) | Optional arbitrary constants sensor electrode |
| 显示方式(Display) | 2x16 Bit LCD |
| 电流输出(Current output) | Isolation could be relocated 4～20mA |
| 控制输出(Control output) | Programmable：ON High limit or low limit relay |
| 脉冲输出(Pulse output) | The optical isolation open-collector output signal, the maximum pulse rate：400 Pulses/Min |
| 通讯输出(Communication output) | RS485 ；Baud rate：1200，2400，4800 |
| 供电电源(Power) | DC 18～36V |
| 工作条件(Working environment) | Ambient temperature:0～50℃ Relative humidity:≤85% |
| 外形尺寸(Dimensions) | 96×96×46mm((H×W×D) |
| 开孔尺寸(Hole size) | 92×92mm(H×W) |
| 安装方式(Installation mode) | Panel mounted(embedded) |
