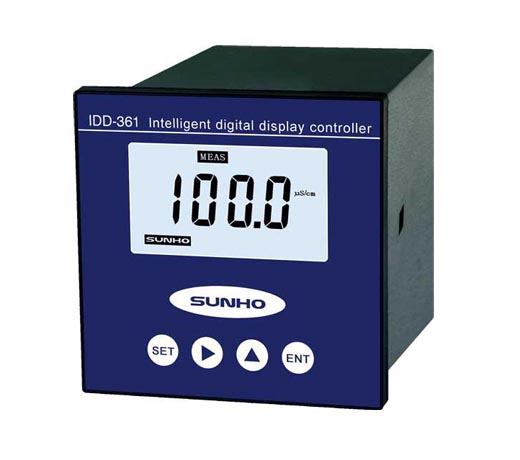

| IDD-361 |
| 接受信号(Receiving signal) | 无源/有源4～20mA电流环(Passive/active 4～20mA) |
| 准确度(Accuracy) | 1.0%(FS) |
| 显示方式(Display) | Large screen parameters LCD |
| 电流输出(Current output) | Isolation of reversible or migration 4～20mA |
| 控制输出(Control output) | ON/OFF High limit,low limit relay |
| 供电电源(Power) | AC 110/220V±10% 50/60Hz |
| 工作条件(Working environment) | Ambient temperature:0～50℃ Relative humidity:≤85% |
| 外形尺寸(Dimensions) | 96×96×130mm(High×width×depth) |
| 开孔尺寸(Hole size) | 92×92mm |
| 安装方式(Installation mode) | Panel mounted (embedded) |
