| 产品别名: | ORP 9600氧化还原电位测控仪
| | 参数类型: | 多参数 |
产品介绍 技术指标

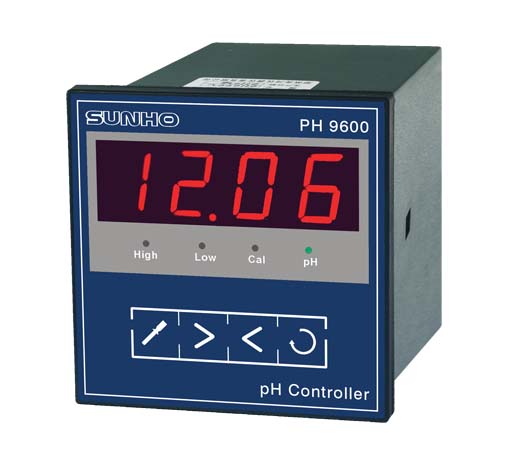

| PH 9600 | ORP 9600 | | 测量范围(Range) | 0.00～14.00 pH | －1000～＋1000mV | | 准确度(Accuracy) | ±0.1 pH | ±2mV | | 温度补偿(Temp.Comp.) | Reference to 25 ℃, manual temperature compensation | — — — | | 介质温度(Oper. Temp.) | 0～100℃ | — — — | | 配套电极(Sensor) | Dual composite electrode | ORP Electrode | | 校准方式(Calibration mode) | 4.00；6.86；9.18 Three-point calibration | — — — | | 显示方式(Display) | 4 bit LED | | 电流输出(Current output) | isolation 4～20mA | | 控制输出(Control output) | ON/OFF High/low limit relay | | 供电电源(Power) | AC 110/220V±10% 50/60Hz | | 工作条件(Working environment) | Ambient temperature:0～50℃ Relative humidity:≤85% | | 外形尺寸(Dimensions) | 96×96×130mm(H×W×D) | | 开孔尺寸(Hole size) | 92×92mm(H×W) | | 安装方式(Installation mode) | Panel mounted(embedded) |
| |
